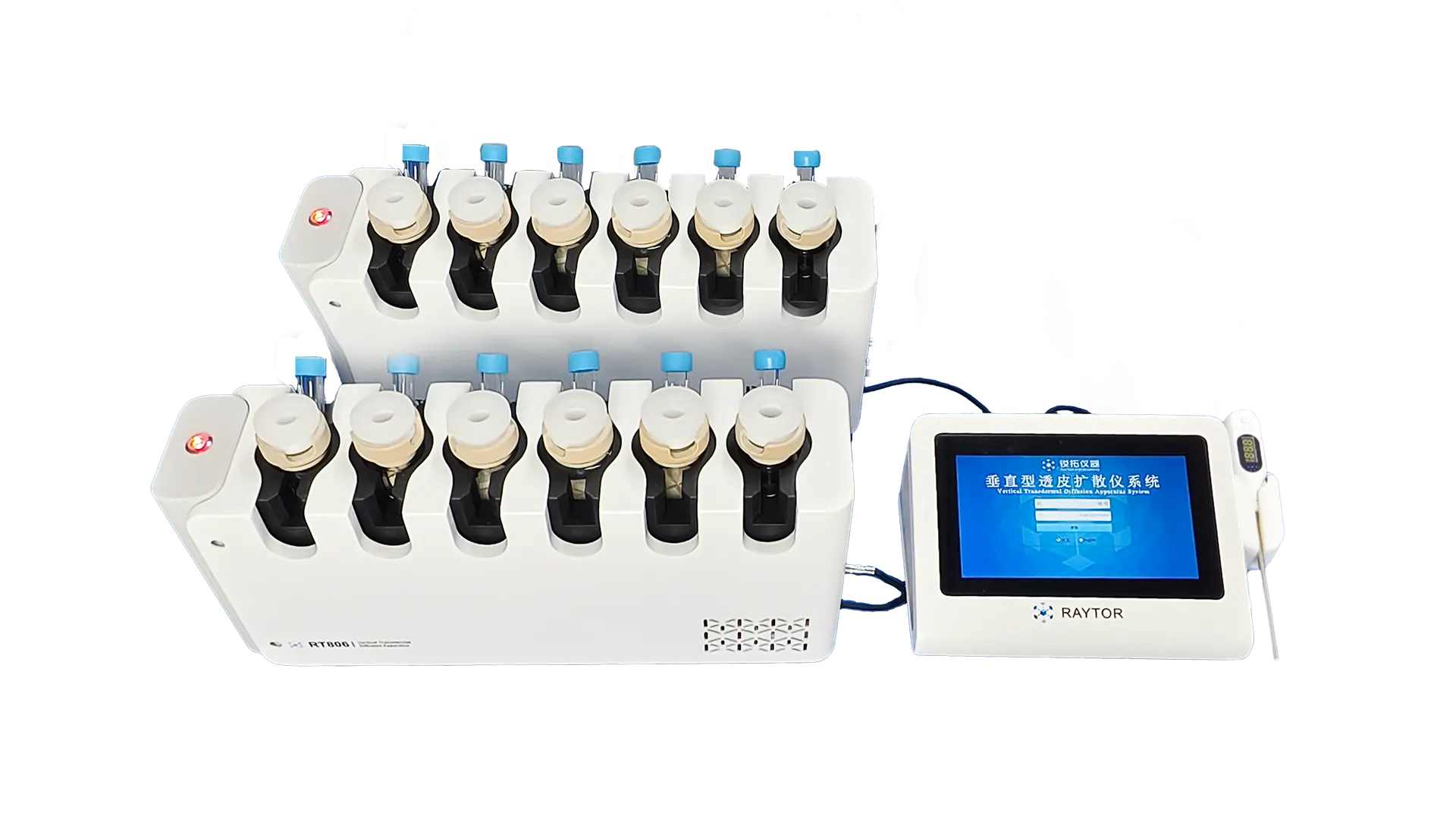

RT806 Vertical Franz Diffusion Cell Tester
The RT806 is structured as a small-sized Vertical Franz Diffusion Cell system that includes heating functionalities with a built-in stirrer module. The device comes with a portable layout that makes it easy to place in any location for convenient operation. The system delivers detailed temperature and speed management needed for reliable transdermal testing. The system meets the performance requirements outlined in USP<1724> for the simulation of in vitro release and permeation procedures. Bubbles are prevented through the filling point design which results in dependable experimental outcomes.
- Entry-level transdermal diffusion system
- Compliant with USP<1724> regulations
- Extremely simple structure
- Convenient manual operation
Key features
Complies with the description of diffusion cell type in USP
For measuring the temperature in the diffusion cell, with results displayed in real time.
Can be connected to one or more diffusion cell systems, with tests conducted without interference.
Applications
Meet the test requirements of USP<1724> for in vitro release and in vitro permeation of semi-solid preparations
- creams
- ointments
- patches
- gels
Technical specifications
- Operation mode
- Touch screen
- Speed error
- ≤±10%
- Number of diffusion cells
- 6 (per group)
- Temperature range
- room temperature ~ 55℃
- The number of diffusion cell systems
- one or more sets
- Temperature error
- ≤±0.5℃
- Speed range
- 200~900rpm
- Sampling method
- manual sampling
