RT9 Series Multi-batch Automatic Dissolution System
Manufacturer: RaytorFamily: Laboratory Automation
RT9 Series

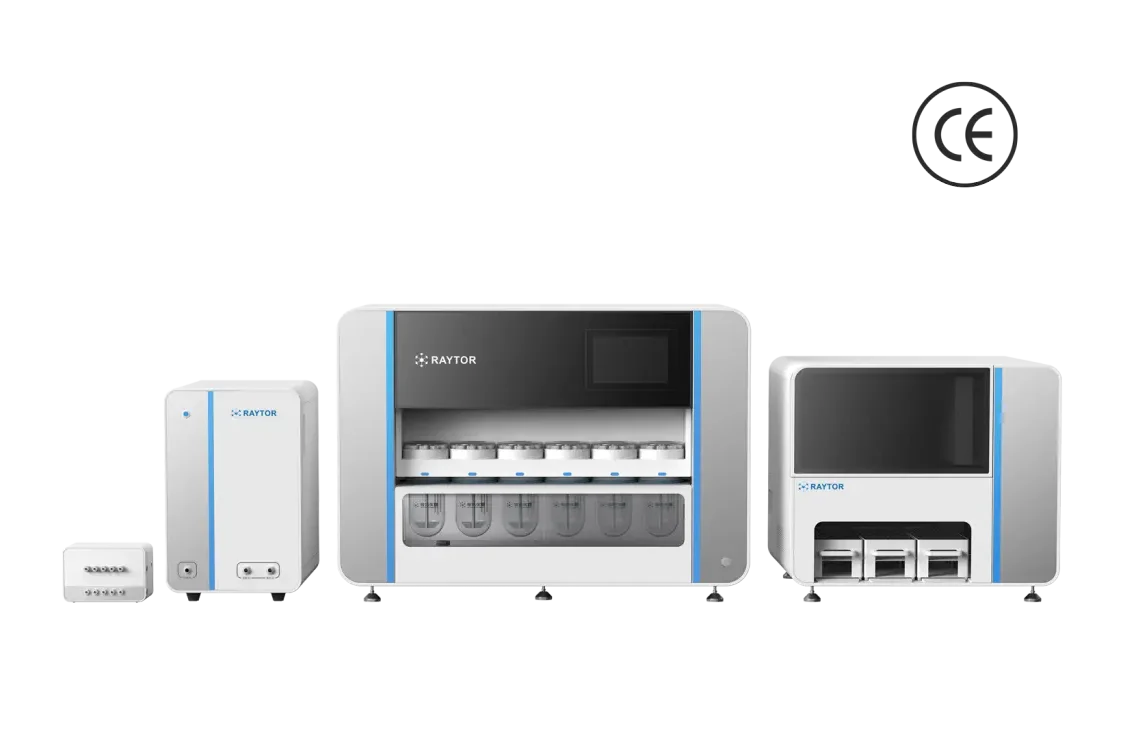

RT9 Series Multi-batch Automatic Dissolution System

A high-efficiency dissolution testing solution named RT900 Series Multi-batch Automatic Dissolution System performs 10 consecutive batch tests while requiring less human interaction. This system provides exact media distribution while delivering complete cleaning of vessels and sophisticated automatic Processes that ensure the reliability of dissolution experiments. The system enables USP 1/2 method processing to meet all regulatory specifications. The instrument contains a high-end autosampler that allows automated online filtering while providing unlimited data storage capabilities. Its precise temperature and speed control guarantee accurate and repeatable test results.

  • Efficient 10-batch dissolution test
  • High Precision Media Dispensing and Removal
  • Thorough Cleaning for Dissolution Cup
  • Advanced Fully Automated Experience

Key features

10 batches efficient experiments

Automatically complete all 10 batches of dissolution testing tasks unattended.

Automatic online filtering

High-end type autosampler that supports storage and online automatic replacement of secondary filters.

Unlimited data storage

It can store at least 15 years of experimental methods and records without the risk of data overwriting.

Thorough cleaning for dissolving vessels

Spraying without dead angle, with the appropriate cleaning fluid and cleaning times set to effectively reduce the risk of sample residue between multiple batches of experiments.

Applications

  • General tablets
  • Immediate-release tablets
  • Enteric tablets
  • Extended-release tablets

Technical specifications

Dissolution System
Dissolution Vessel Number
6
Number of automatic experimental batches
10
Setting Range
20-250 rpm (RPM)
RPM Resolution
0.1 RPM
Temp. Accuracy
≤ ± 0.5℃
Temp. Resolution
0.1 ℃
Level
< 0.5°
Vessel Verticality
90°± 0.5°
Shaft Verticality
90°± 0.5°
Centering Deviation
< ± 2.0 mm
Depth Positioning Deviation
< ±1.0 mm
Shaft Wobble
< ± 1.0 mm
Basket Wobble
< ± 1.0 mm
Medium Preparation Workstation
Temp. Control Rang
Room Temp. ~ 45℃
Degassing Effect
Oxygen ≤ 3ppm
Degassing Volume
≥50L
Automatic Sampling Workstation
Maximum Settable Sample Number
20
Sampling Range
5 ~ 20 ml
Sampling Precision
≤ ±1%
Operating System
—
Meeting FDA21 CFR Part 11
Official Raytor product page

Ready to specify a Raytor system?

Tell us your method, dosage form and throughput. Our team will prepare a quotation.
